Features
- Fast Rise Time <10ns
- Extreme Short Pulse Width
- Compact and Lightweight
- External trigger operation
- Trigger Synchronous Output
- Output Voltage and Pulse Repetition Rate Adjustable

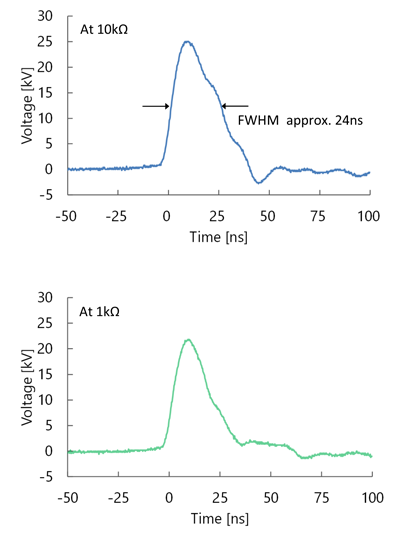

Waveform examples
Specifications

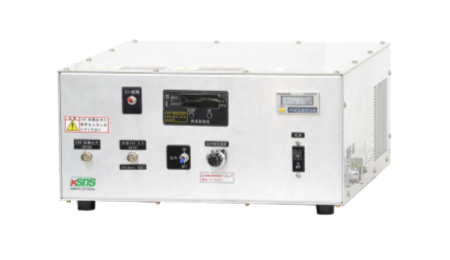

| Product Name | Nanosecond Pulsed Power Generator |
|---|---|
| Model Number | PPM1000S-1KESP |
| Input Voltage | AC100-130V or AC200-240V 50/60Hz |
| Maximum Output Voltage (No-load) | 25kV |
| Rise time | <10ns |
| Minimum Pulse Width | <25ns |
| Pulse Repetition Rate | 1000pps (Max) |
| Output Energy | 13mJ/pulse (Max) |
| External Trigger Input | 5V (BNC) Square wave |
| Protection | Charging error |
| Over temperature | |
| Fan speed reduction | |
| External trigger fault | |
| Dimension | 362W×164H×456D (mm) |
| Weight | 6.1kg |
| Accessories | Power cable (1.5m) |
| Output cable (0.5m) |
